INQUIRYProduct Feature

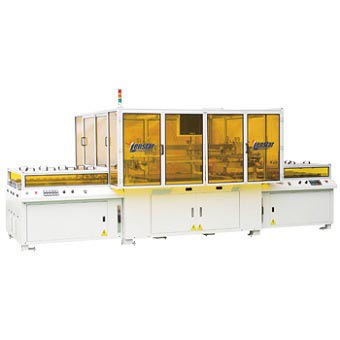

- CCD registering screen printer adopted with shuttle table, and aligning accuracy within ±0.005mm, save more time and provide excellent function and increase production yield.
- The structure of equipment is lighter and Stronger, and with the top servo motor, more stable, quiet, and fast.
- The teble adopts integrative shaping, and material is caat aluminum,the flatness is ±0.lmm, printing membrane is equally.
- Provide the synchronous lift device with four bars for printing device, to ensure thickness of printing membrance accuracy Provide the synchronous lift device with four bars for printing device, to ensure thickness of printing membrance accuracy.
- Adopt with servo motor to do peeling function, and collect high precision digital constant pressure printing head, perform effect of constant pressure completely.
- Operation by touch panel, easy to setting and operate, the memory capacity accept 100 unit production conditions and other function, such as auto examination breakdown and display trouble shooting.
- The design of auto loadin/unloading device for ITO auto assembly, promote capacity and yield rate directly.
- Connect front/back production by contactless power link to deliver ITO gIass, and load into aligning area by forked robot, and achieve all request of auto production adequately.
- Provide safety device, such as safety return to origin, auto detect error system, safety optical grating, Emergency switch alarm light,etc.
- Optional accessory: antistalic bar, anti-dust cover for optical industry, auto loading/unloading.
Product Specification
| Item | Specification |
|---|---|
| Table dimensions | 1100x1200mm |
| Printing Area(MAX) | 920x920mm |
| Printing Area(MIN) | 730x730mm |
| Frame Dimension(MAX) | 1400x1400mm |
| Frame Dimension(MIX) | 1100x1100mm |
| Frame Thickness | 30-40mm |
| Printing Pressure | 1-6kg |
| Main Power | 3Φ, 220V/380V, 50/60Hz |
| Power Consumption | 5.0kw |
| Air Pressure | 6-8kg/cm2 |
| Air Consumption | 70L/Min |
| Dimension | 4900x2250x1850mm (Contain auto loading and unloading device) |
| Weight | 4600kg |
